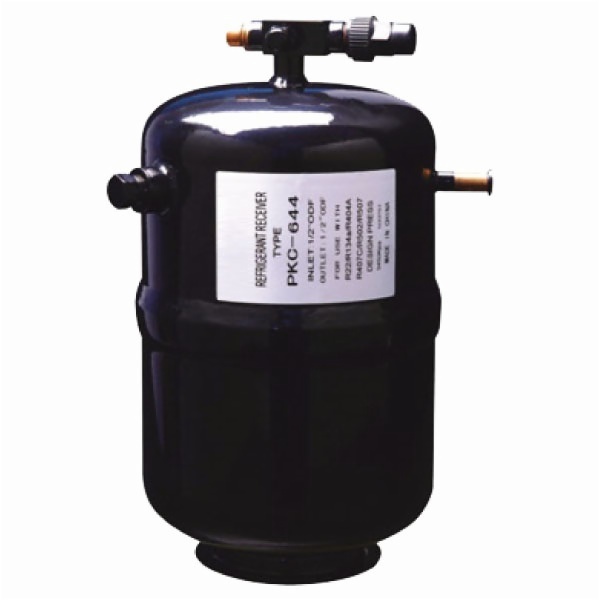

Receiver
The function is to store the liquid refrigerant which supplied to evaporator. Whilst, the liquid receive is capable of strong all the refrigerants in system when maintaining the system.
The selection of size of liquid receiver should be based on the refrigerant volume in equipment. The capacity of liquid receiver is listed on the sheet below.
Technical Parameter


Refrigeration oil	R22/R134a/R404A/R407C/R507	Medium temperature	-40→+120℃
Max. worRing pressure	3400Rpa	Max. testing pressure	4100Rpa

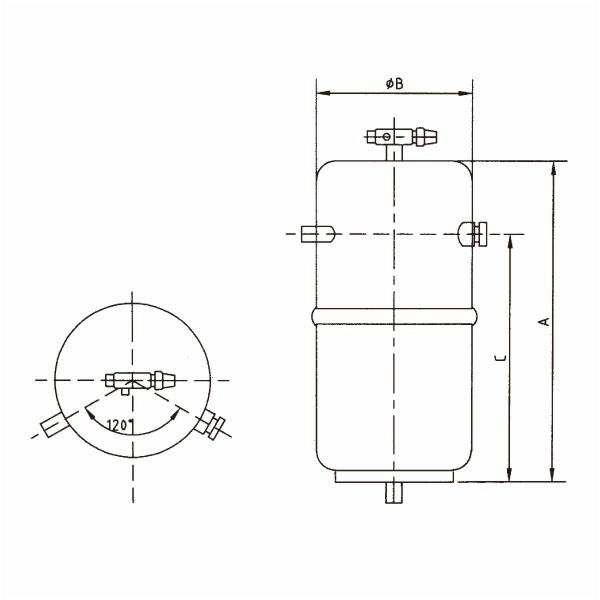

Type	Connection Size (in)	A (mm)	B (mm)	C (mm)	Volume (L)
PRC-233	3/8	200	100	170	1.4
PRC-344	1/2	250	120	195	2.4
PRC-544	1/2	340	140	270	4.4
PRC-644	1/2	380	140	310	6
PRC-855	5/8	400	180	320	8.2
PRC-1166	3/4	510	180	430	11
PRC-1577	7/8	415	220	344	14.5
