11.5CFM Single Stage Vacuum Pump

Sub-categories

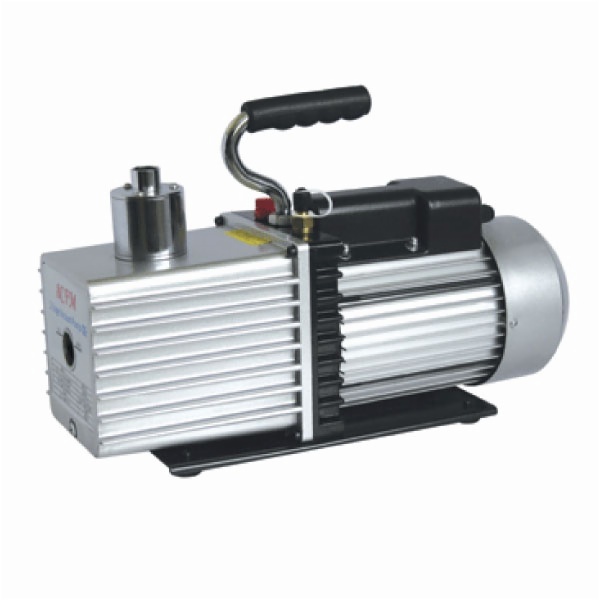

11.5CFM Single Stage Vacuum Pump TW-6A

Select All

Enlarge

Item Code:TW-6A Features:

<< Prev Back Next >>

Description

Model		TW-6A
Free Air Displacement	220V~/50Hz	11.5 CFM
		325 L/min
	110V~/60Hz	13.5 CFM
		382 L/min
Ultimate Vacuum		5Pa/35Microns
Motor Power (HP)		3/4
Rotating Speed(rpm)	220V~/50Hz	1440
	110V~/60Hz	1720
Inlet Port		1/4 ” SAE
Oil Capacity (ml)		700
Dimensions (mm)		425 X 155 X 280
Weight (kg)		17.4
