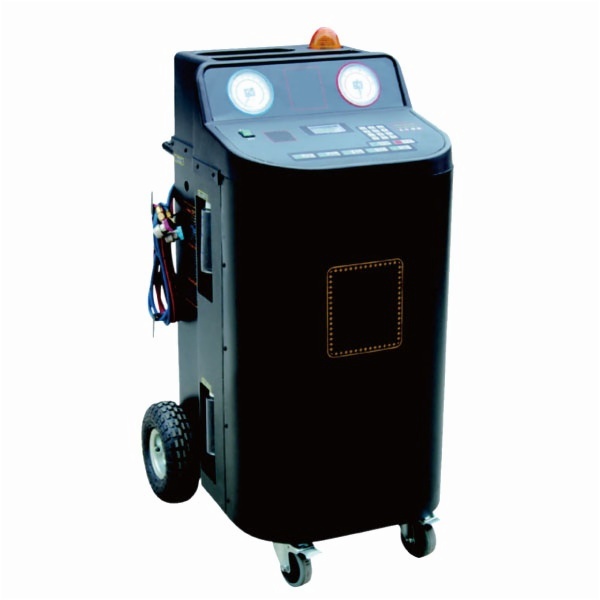

Refrigerant Recovering & Recycling & Recharging & Cleaining
Chinese and English are available;
Large LCD display unit,automatically Display the daily maintenance and troubleshooting.
Automatically prompts nexi-step concrete operations,irrelevant button auto self – lock to prevent from improper operation,easy to operate and no special training needed
Auto- alarm for misoperation and malfunction such as overheating,low oil level,short of refrigerant ect.
Auto data recording system
Maintenance message display(LX-669)
Equipped with a special device for recharging refrigeration oil and UV
Fully automated system in refrigerant recovery,recycling,recharging,air evacuation and A/C system closed loop-cleaning.
Scientific design and excellent refrigerant oil separation improves the quality of recycled refrigerant, and prolonging the life of the equipment.
Built in an integrated automobile information data base for easy maintenance.
Auto-prompt for replacements of the necessary consurmable parts
High-precision electronic scale for acccurate dosing of refrigerant recharge
Equipped with heavy-duty filter drier to reduce the frequency of replacement
To be safe,equipped with safety valve&air evacuation valve in the steel cylinder.
Special oil re-circulation function prolongs the service of life of the compressor.
User and process friendly: The display provides action to be carried at each step,All valves are automatically operated to minimize any mishandling.
Life testing on 600 vehicles and 3000 operation hours, Attained CE Quality Certification and ISO 14001 certification,Highly reliable with low maintenance.
Technical parameter
Recovery tank: 21kgs Recycling rate: 360 g/m
Recovery rate: 420g/m Recharging rate: 900g/m
Vacuuming rate:180L/m Application refrigerant:R134a
Precision of electronic scale: ±2G Weight: 105kgs
Power supply:220V / 110V 50 HZ /60 HZ
Main Functions
1. Refrigerant Recovery / Recycle： using powerful compressor to recover and reclcle refrigerant,Recovered refrigerant will be filtered to a level which can be recycled,Waste of oil and water from the recovered refrigerant will be contained in the filter tank and later discharged off thesystem
2. Making thorough air evacuation: equipped with a high –displacement vacuum pump to ensure fast speed of air evacuation and remove moisture &air from A/C system entirely.
3. Recharging: equipped with a fully automated intelligent recharger able to set up recharging amount freely and able to stop automatically when recharging is finshed, high / low pressure gauges easily detect A/Cpressure and temperature to avoid wring recharging operation.
4. Purification:equipped with high efficeency filter system that can separate refrigerant oil from refrigerant, remove moisture and impruities and circularly purify the refrigerant to come up to the usage standard
5. Air inflation: to go through the blocks in A/C system to make pipeline smooth.
6. closed loop – cleaning without A/C pipeline disassembly:fast closed loop-cleaning of the A/Csystem with liquid – state refrigerant to heighten the purity of refrigerant,whice avoids secondary pollution of refrigerant system,Safe,reliable and economical of refrigerant, No need to use solvent to clean the A/C system.which will largely avoid malfunction in the A/C system,All the functions can be automatically done by just pressing one button.
print function:USB access port available,maintenance data record print function
