Poly Run Air Conditioning&Refrigerator products

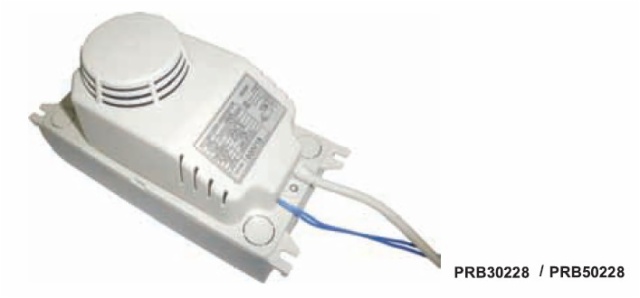

Air Conditioning Condenser Pump PRB3022 / PRB50228

Item Code:PRB3022 / PRB50228 Features:
  • Description



1. Microsoft computer control with no mistake, and it’s first to create

2. Shaded pope motor torque force is powerful. and guarantee never block the pipe.

3. Exceptional exotherm protective equipment with high safety performance (PRB1018)

4. Abnormal temperature rising protective device have high safety performance (PRB3022 / PRB50228)

5. The pump have equipped with overflow failure alarm (PRB3022 / PRB50228)

6. Overlarge double-sided impeller, and the capability of pollution discharge is powerful.

7. Microsoft computer control system, wipe off the mechanical noise from the pump

8. The pump have the function of inverted valve, never cause reverse current because of the circumfluence by drain fall.

9. Isolated heat preservation design-crust don’t have condensation of moisture and sweat.

10. Adopt fireproof material, and  fire rating up to UL94V-0



Model

PRB30228

PRB50228

Current Source

AC220-240V / 50/60Hz

AC220-240V / 50/60Hz

Max head

3/3.5M

5/6M

Discharge of Water

1800-3000CC/MIN

1800-3000CC/MIN

Electric Consumption

22/25W

55/58W

Check valve

Built-in

Built-in

Top / Bottom of the inlet

5/8’’ (Ram) / 3/4’’ (Ram)

5/8’’ (Ram) / 3/4’’ (Ram)

Outlet Piping

3/8’’ (Ram) / 3/4’’ (Ram)

3/8’’ (Ram) / 3/4’’ (Ram)

Applications

All kinds of Cabinets, fan coil ceiling cassette

Dimensions LxWxH

250x140x110mm



Other Products

Product Name:
Air Conditioning Condenser Pump
Model:
PRB1218/PRB1028
Description:
PRB1218/1028 is a total system, used for remove condensated water in inlaid type, ceiling suspended and disconnect-type air-conditioners, which can’t be removed naturally.PRB-1218/1028’s design has two parts: pump room / control equipment, water storage tank add on automatic switch. This two parts’ design mainly applied to installed in all kinds of air-conditioners easily. These two parts can be installed in air-conditioners, or pump room/control equipment can be installed on ceiling, which above the water storage tank within 1meter. Floating control of water storage tank is separated into three parts: start-up, cease and safety warning switch. Enclose: inlet pipe, clamp, cloth insertion sheet, exhaust pipe and drain pipe.
Product Name:
Air Conditioning Condenser Pump
Model:
PRB1018
Description:
more
