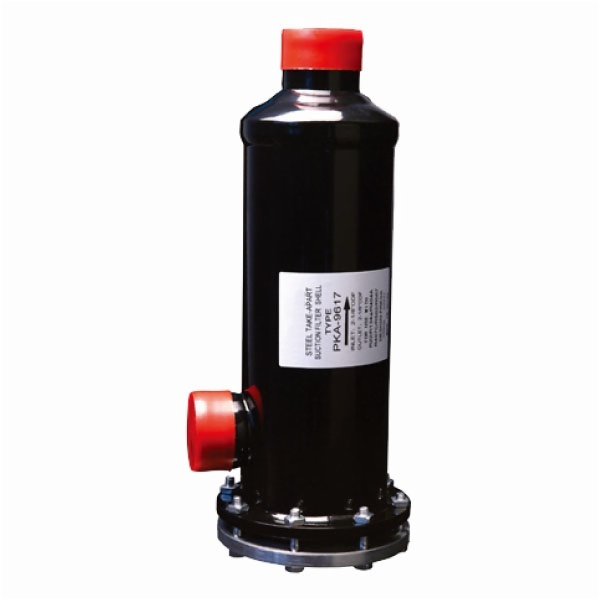

Core changeable and inspiration demountable drier
Put the filter element in the demountable body and install it on the inspiration pipeline can remove remnants pollutant. The core changeable and inspiration demountable drier can clean system with provisional core.
The filter element can be changed very easily as it with high quality flange and spring.
The demountable drier must be installed according to the arrow direction.
Technic parameter

Refrigeration oil	R22/R134a/R404A/R407C/R507	Medium temperature	-40→+120℃
Max. worRing pressure	3400Rpa	Max. testing pressure	4100Rpa

Type Choosing Parameter

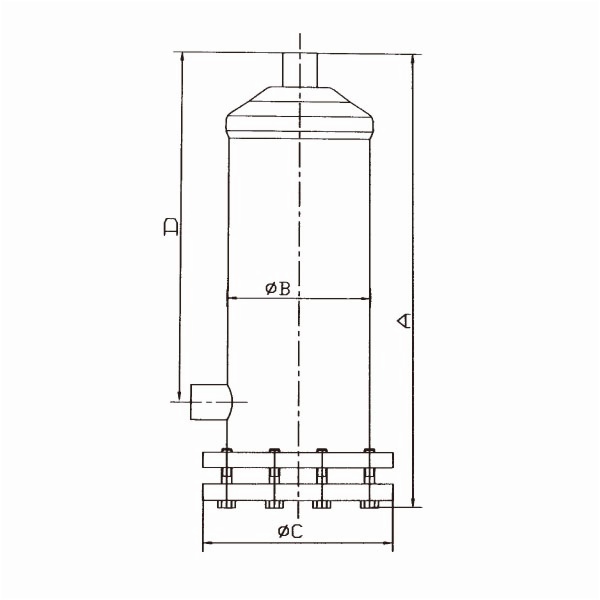

Type	Normal refrigeration capacity (Rw)			Three-dimensional data
	R22	R134a	R404a	A (mm)	B (mm)	C (mm)	D (mm)
PRA-4813	35.2	28.2	28.2	245	114	150	164
PRA-4817	45.8	35.2	35.2	251	114	150	170
PRA-4821	52.8	35.2	35.2	256	114	150	175
PRA-9617	70.4	45.8	45.8	396	114	150	315
PRA-9621	88	70.4	52.8	401	114	150	320
PRA-9625	105.6	88	70.4	406	114	150	325
PRA-30025	123.2	105.6	88	644	152	200	517
PRA-30028	140.8	123.2	105.6	650	152	200	523
PRA-30029	140.8	105.6	105.6	652	152	200	525
PRA-30034	176	140.8	123.2	660	152	200	533
