V8090
Features

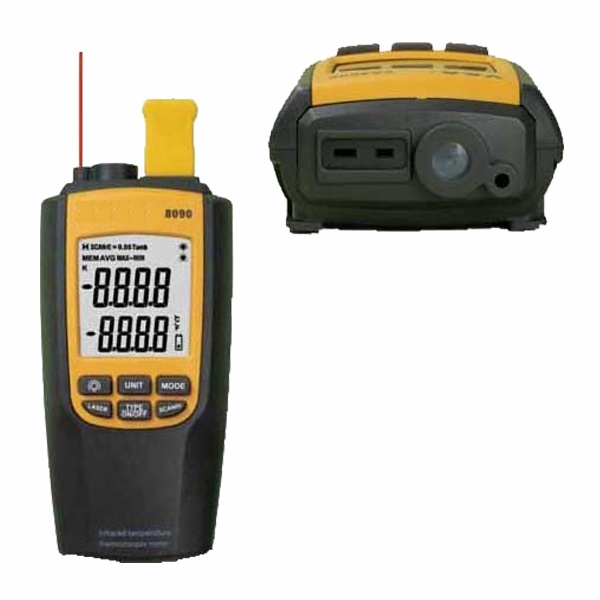

V8090 is dual thermometer that combines two precision thermometers in one unit: a non-contact infrared thermometer and a thermocouple thermometer. This unique thermometer measures surface temperatures with and without contact. Measures internal temperatures with type K thermocouple. With fast response, emissivity of 0.95,field of view of 2:1, it is an ideal range for non-contact accurate thermometer, provides holds AVG, Min & Max & values, backlight, provides ℃ as well as ℉ temperature results, auto power off setting, and Data Hold function Applications include refrigeration, Boiler, Pavement, printer / Copier, HVAC / R, Automotive and Industrial Troubleshooting
Measuring Range
Infrared: -50～300℃ （-58～572℉）
Thermocouple: -200~1300℃(-328℉~2372℉ )
Resolution
Infrared: 0.1℃/0.1℉
Thermocouple: 1℃/1℉（thermocouple above 1000℃）
Accuracy
infrared: -50~-20℃/ ± 5℃/9℉
infrared: -20~300℃/ ± (1.5% reading +3℃/5℉)
thermocouple: -200~-100℃/±(0.2%reading+1℃/2℉)
thermocouple: -100~1300℃/ ±(0.1% reading +0.7℃/1.4℉)
Display: 4 digits LCD Display
Emissivity: 0.95
Field of view: 2:1
Laser power: Less than 1 mw
Response time: 0.5 second
Auto power off: 25 seconds (infrared) or 20 minutes(thermocouple)
Special function: Data hold; MAX, MIN and AVG; Back light; Low battery indicator
Operating environment: 0 ~ 50℃(32~122℉)，0 ~ 90%RH
Storage environment: -10 ~ 60℃(14~140℉)，0 ~ 80%RH
Dimension: 121(L)x60(W)x30(H)mm
Weight: about 180g
Accessories
Free K-type thermocouple wire
Free 1.5V x3AAA batteries
Free protect cover
Free protective carrying case
Free Wrist Strap/String
User's Manual
