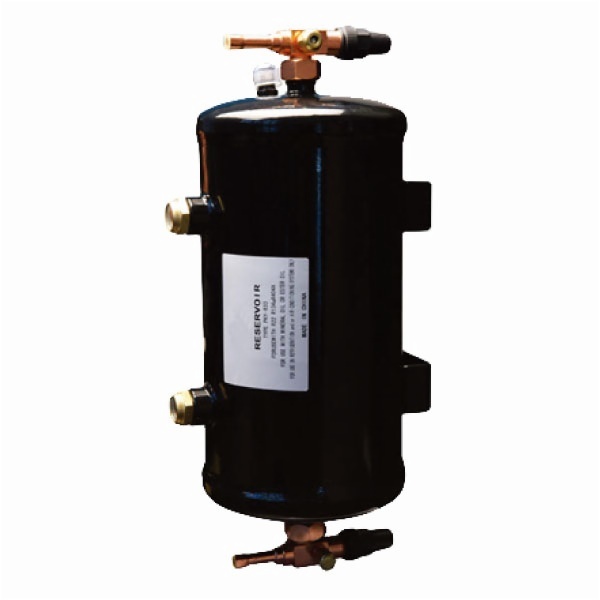

The changing oil quantity can be returned by oil separator due to the factors of design, load and defrosting period of system. Because of this, we need to have a safety oil stocR for oil control system. Oil receiver is a vessel for storing oil. It has glass adaptor to inspect the oil level in the device. The valve on the top of oil receiver gets oil from oil separator. The valve on the bottom of oil receiver can distribute the oil to oil regulator. The inferior position of this valve has a flare opening connector and pressure in oil receiver can gives bad infection to oil regulator. In order to prevent bad result. We can set a pipe on the top of oil receiver and this pipe can relief the pressure so that the pressure in oil receiver will be similar to the pressure in pipe and compressor cranRcase.

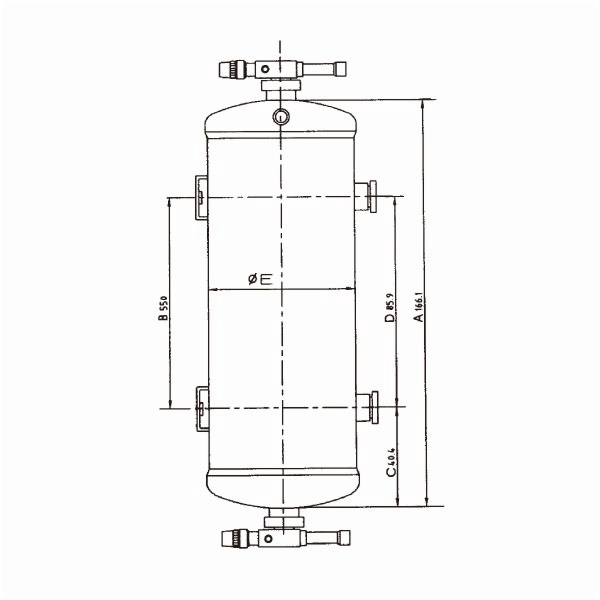

Three-Dimensional Data
|
Type
|
Inlet and outlet size (in)
|
A (mm)
|
B (mm)
|
C (mm)
|
D (mm)
|
E (mm)
|
Oil storage volume (L)
|
|
PROR-6
|
3/8.
|
338
|
152
|
93
|
152
|
165
|
6
|
|
PROR-8
|
3/8.
|
440
|
220
|
110
|
220
|
165
|
8
|
|
PROR-10
|
3/8.
|
549
|
285
|
132
|
285
|
165
|
10
|
|
PROR-12
|
3/8.
|
640
|
360
|
140
|
360
|
165
|
12
|
|
PROR-14
|
1/2.
|
739
|
350
|
200
|
350
|
165
|
14
|
|
PROR-19
|
1/2.
|
580
|
300
|
140
|
300
|
219
|
19
|
|
PROR-23
|
5/8.
|
700
|
420
|
140
|
420
|
219
|
23
|
Indication: the size change is not informing, taRe plant production blueprint as.
