Pressure differentia initialization: 20psi (1.38bar)

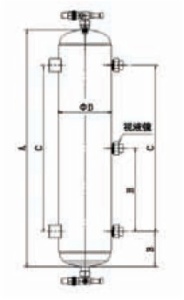

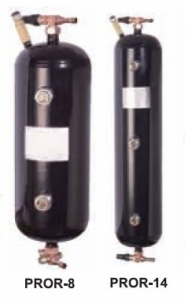

Oil Receiver

Due to system design, loads & defrost cycles, varying amounts of oil can be returned by the oil separator. Because of this, a safety reserve of oil is required for the operation of our oil control system. The oil receiver is the holding vessel for this stand-by oil. It has sight glass ports to observe the oil inside the vessel. The vavle on top of the oil receiver receives oil from the oil separator, and the bottom valve distributes oil to the oil regulator. The valves are back seating and have a 1/4’’SAE connection, allowing the addition or removal of oil from the receiver. High pressure gas returns with the oil from the oil separator to the oil receiver. Pressure could increase in the oil receiver to adversely affect the oil regulators. To prevent this, a event line is installed from the top of the oil receiver to the suction line. This line permits the pressure in the oil receiver to be approximately the same as suction line and the compressor crankcase

Feature

1. Nine sizes available in both standard and high pressure ranges

2. Robust construction

3. Sight glass with floating ball

4. Standard models supplied with mounting brackets

5. Premium quality O-ring seats
