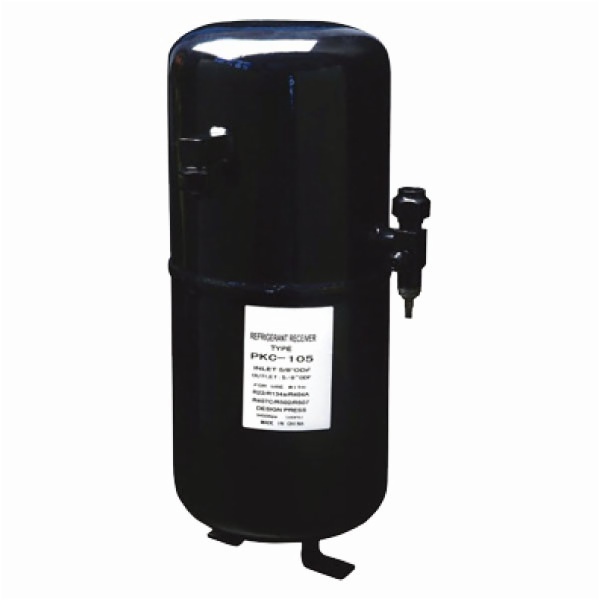

Receiver
The function is to store the liquid refrigerant which supplied to evaporator. Whilst, the liquid receive is capable of strong all the refrigerants in system when maintaining the system.
The selection of size of liquid receiver should be based on the refrigerant volume in equipment. The capacity of liquid receiver is listed on the sheet below.
Technical Parameter

Refrigeration oil	R22/R134a/R404A/R407C/R507	Medium temperature	-40~+120℃
Max. worRing pressure	3400Rpa	Max. testing pressure	4100Rpa

Type Choosing Parameter

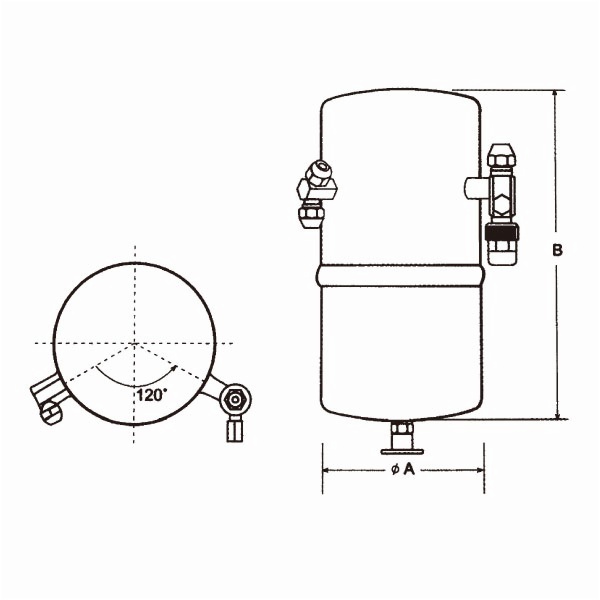

Type	Connection Size (in)	A (mm)	B (mm)	Volume (L)
PRC-101	3/8	85	200	0.95
PRC-102	3/8	127	260	3.00
PRC-103	3/8	127	300	3.40
PRC-104	1/2	152	350	5.90
PRC-105	5/8	165	410	9.55
