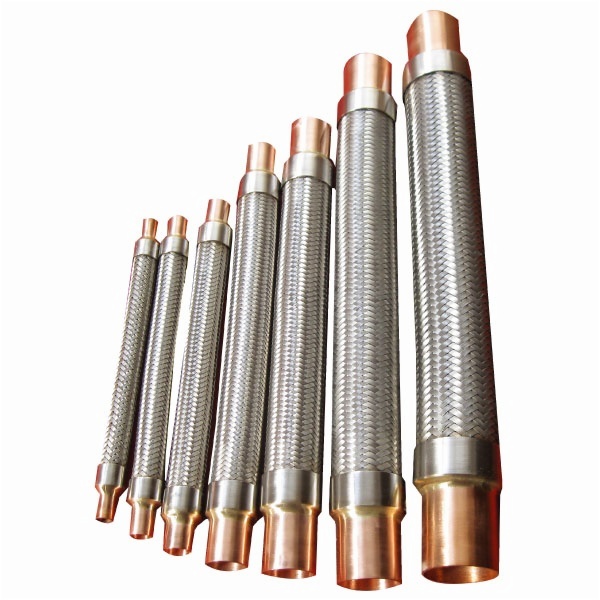

Vibration Absorbers, Vibration Absorbers manufacturer

Vibration Absorbers LV–3/8’’ LV–1/2’’ LV–5/8’’ LV–3/4’’ LV–7/8’’ LV–1-1/8’’ LV–1-3/8’’ LV–1-5/8’’ LV–2-1/8’’ LV–2-5/8’’ LV–3-1/8’’ LV–3-5/8’’ LV–4-1/8’’

Select All

Item Code:LV–3/8’’ LV–1/2’’ LV–5/8’’ LV–3/4’’ LV–7/8’’ LV–1-1/8’’ LV–1-3/8’’ LV–1-5/8’’ LV–2-1/8’’ LV–2-5/8’’ LV–3-1/8’’ LV–3-5/8’’ LV–4-1/8’’ Features:

Description

Features

1 Japan and South Korea imported technology

2 Germany imported original leak detector equipment

3 Domestic first-class processing equipment

4 Strictly control the raw materials

5 Technology updates and technical breakthrough

6 Products a pass rate of 99%

7 With competitive price

8 Short delivery cycle

9 High quality of after-sales service

Model	Dimension					Max Working Pressure psiG	Burst Pressure psiG
Model	A I.D.	B ±3mm	C ±3mm	D ±6mm	E ±1.5mm	Max Working Pressure psiG	Burst Pressure psiG
LV–3/8’’	9.62	20	177.5	217.5	13	500	2500
LV–1/2’’	12.8	20	188.6	228.6	13	500	2500
LV–5/8’’	16.2	22	206.8	250.8	17	500	2500
LV–3/4’’	16.2	28	212.3	268.3	17	500	2500
LV–7/8’’	22.5	30	244.8	304.8	18	500	2500
LV–1-1/8’’	28.8	38	255.3	331.3	20	500	2500
LV–1-3/8’’	35.3	40	315	395	22	500	2500
LV–1-5/8’’	41.7	50	328.6	428.6	23	500	2500
LV–2-1/8’’	54.5	60	403.8	523.8	23	390	1950
LV–2-5/8’’	67	76	465.5	617.5	25	340	1700
LV–3-1/8’’	79.6	85	514.2	684.2	25	300	1500
LV–3-5/8’’	92.5	100	617.5	817.5	25	175	525
LV–4-1/8’’	104.9	110	616.6	836.6	25	175	525

Vibration Absorbers LV–3/8’’ LV–1/2’’ LV–5/8’’ LV–3/4’’ LV–7/8’’ LV–1-1/8’’ LV–1-3/8’’ LV–1-5/8’’ LV–2-1/8’’ LV–2-5/8’’ LV–3-1/8’’ LV–3-5/8’’ LV–4-1/8’’
