Filter Drier Core, Filter Drier Core manufacturer

Filter Drier Core Filter Drier Core

Select All

Enlarge

Item Code:Filter Drier Core Features:

Description

Cores and demountable type of filter-drier shells produced in honglida is replaceable. Cores are individually packed in metal cans, it and hermetically packed against grease moisture and dirt. Includes the X suction line filter cores and the D/H liquid line block series. The method of mounting the cores or felt elements on the end plate by means of tie rods makes them very easy to install and remove. Dtailed instructions are printed on each can.

Features

High moisture, foreign matter and acid removal ability in special environment.

Protects the normal system and clean up the compressor.

Technic Parameter

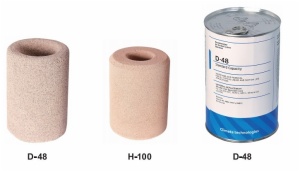

D/H Liquild Line Blocks
Model	Features	A (in)	B (in)	C (in)
D-48	High Acid Removal	1.85	3.78	5.51
H-48	High Acid and Water Removal	1.85	3.78	5.51
H-100	High Acid and Water Removal	2.09	4.8	6.5

Technic Parameter

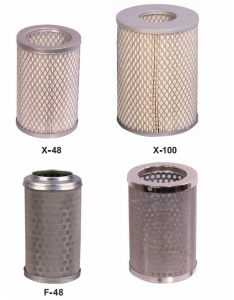

X Filter Element
Model	Material	A (in)	B (in)	C (in)
X-48	Balayruse Type Core	3.74	5.51	0.79
F-48	S/S 100 mesh	3.74	5.51	0.79
X-100	Balayruse Type Core	4.69	6.54	1.10
