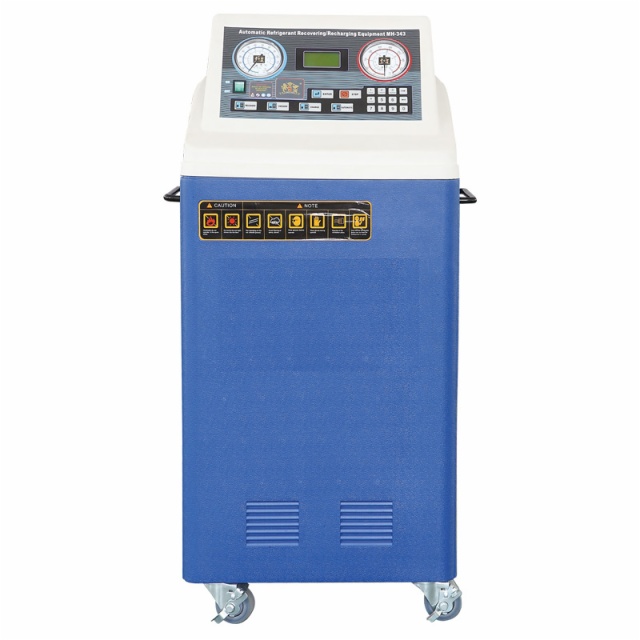

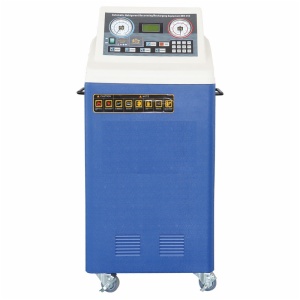

This is a refrigerant recovering / recycling / recharging equipment design for R134a A/C system. The unit mainly used in automobile service stations, automobile production line ect.
Features
1 Eco-friendly Recovering: high and low pipe recovering at same time, the recovered refrigerant through the purification system are reusable.
2 Evacuation :high effective 2-stage vacuum pump has the power to quickly evacuate the system
3 Automated refrigerant recharging: the equipment automated charging the refrigerant follow customer’s manually set value.
4 Purification: professional and high efficiency purification system, improve the purity of refrigerant.
5 Human – based and full automatic design, all the operation can be finish with one key.
6 The unit installed light for alarm devices to help customers achieve Long-distance monitoring.
|
Recovery Rate
|
350g/min vapor, 500g/min liquid
|
|
Recycling Rate
|
420g/min
|
|
Recharging Rate
|
1500g/min (Range: 0-7kg)
|
|
Vacuuming Rate
|
170L/min
|
|
Max Recovery Quantity
|
12kg
|
|
Refrigerant Types
|
R134a
|
|
Compressor
|
1/2HP, Twin cylinder oil-less compressor
|
|
Condenser
|
Condenser wirh 2 tube rows
|
|
Precision of Electronic scale
|
±2g / 50kg
|
|
Cylinder Size
|
12kg
|
|
AC Voltage (V/Hz)
|
220V / 50/60Hz
|
|
Operating Temperature (℃)
|
0-50℃
|
|
Dimensions LxWxH (mm)
|
680x610x1140
|
|
Net Weight (kg)
|
96
|
