Poly Run Air Conditioning&Refrigerator products

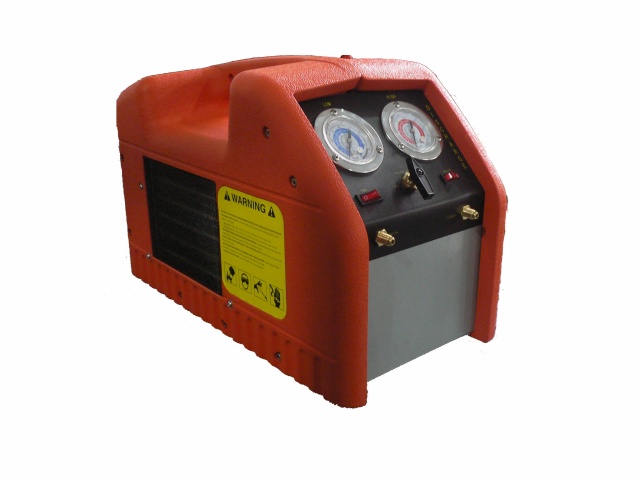

Semi-automatic Refrigerant Recovery System RECO229

Item Code:RECO229 Features:
  • Description





Features

1 ARI 740 certified

2 2-Valve refrigerant recovery system

3 Single valve control for easy change over from liquid to vapor to purge

4 Poly Run valve regulates refrigerant to the compressor. Eliminates the need for the technician to throttle the suction valve. Protects the life of your compressor, and your investment

5 Built-in suction filter located under suction port

6 High efficiency fan keeps air moving across condenser for cool running even in hot weather

7 Recovers refrigerant and shuts off when unit reaches 15’‘of vacuum. Unit will automatically restart if system pressure rises

8 Senses back pressure from tank and shuts off automatically at 520psi for safety

9 Single high pressure safety switch

10 LED signals recovery completion

11 On–the–ly purge with simple turn of a knob to remove residual refrigerant and help prevent cross contamination

Direct Vapour  (kg/hr)

0.175kg/min

Direct Liquid (kg/hr)

0.375kg/min

Push-Pull Liquid  (kg/hr)

250kg/hr

Applications

Small A/C units, automobiles

Power

1/3HP, DC Motor

Compressor

Oil-less maintenance free

AC Voltage (V/Hz)

110-120V / 50/60Hz

Operating Temperature (℃)

0-49℃

Dimensions LxWxH (mm)

510x270x330

Net Weight (kg)

17
