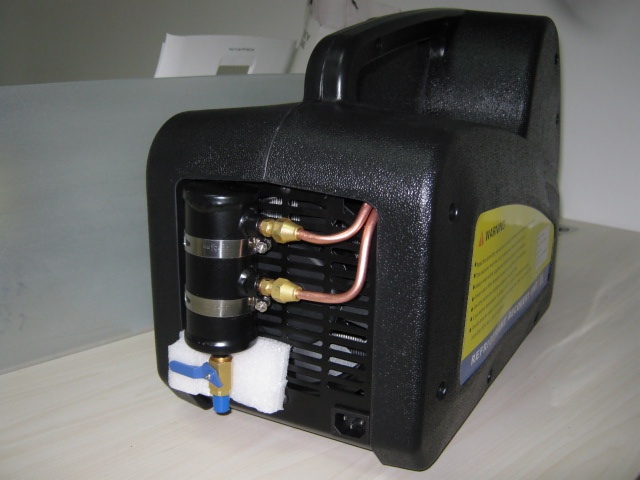

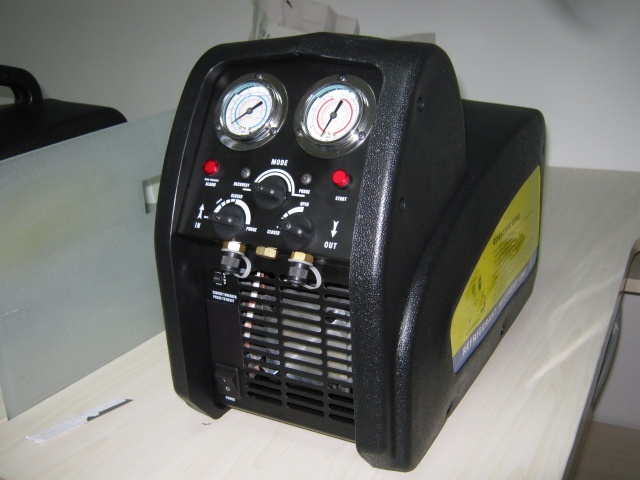

refrigerant recovery & recycling unit RECO520S

  • refrigerant recovery & recycling unit
  • refrigerant recovery & recycling unit
refrigerant recovery & recycling unit
refrigerant recovery & recycling unit
Item Code:RECO520S Features:Power: 110-127V/60Hz; 220-240V/50/60Hz; 100V/50/60Hz Motor: 1HP AC ;Capacitor start Max. Current: 6A@50Hz 12A@60Hz Compressor: Twin-piston style
  • Description

Refrigerants
Cat. III: R-12, R-134a, R-401C, R-406A, R-500
Cat. IV: R-22, R-401A, R-401B, R-402B, R-407C,R-407D, R-408A, R-409A, R-411A, R-411B, R-412A, R-502, R-509
Cat. V: R-402A, R-404A, R-407A, R-407B, R-410A, R-507


Power: 110-127V/60Hz; 220-240V/50/60Hz; 100V/50/60Hz
Motor: 1HP AC ;Capacitor start
Max. Current: 6A@50Hz 12A@60Hz
Compressor: Twin-piston style


Refrigerant
Recovery
Rate
                Cat. III
Cat. IV
Cat. V
Vapor          0.46kg/min
0.50kg/min
0.52kg/min
Liquid         3.14kg/min
3.62kg/min
3.70kg/min
Push/Pull       9.28kg/min
11.14kg/min
12.44kg/min
Recycling Rate               3.14kg/min
3.62kg/min
3.70kg/min


High Pressure Shut-off: 38bar/550psi
Low Pressure Shut-off: Optional
80% OFP. Shut-off kit: Optional
Operating Temp. 0℃-40℃
Dimensions: 485mm(L)*220mm(W)*365mm(H)
Net Weight: 16kg
