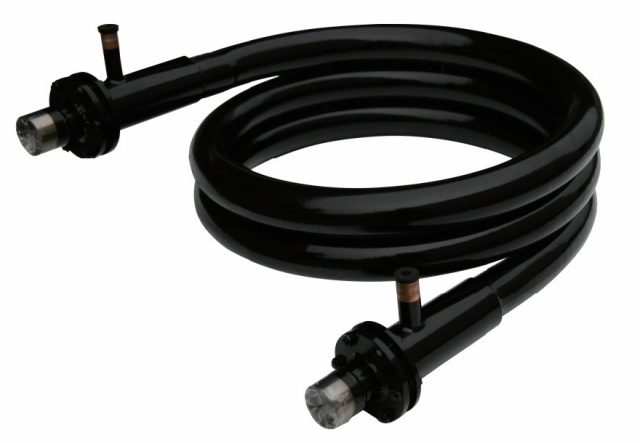

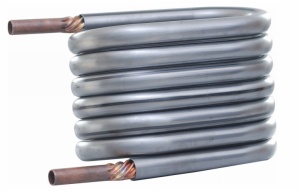

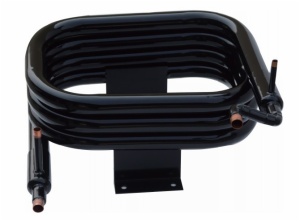

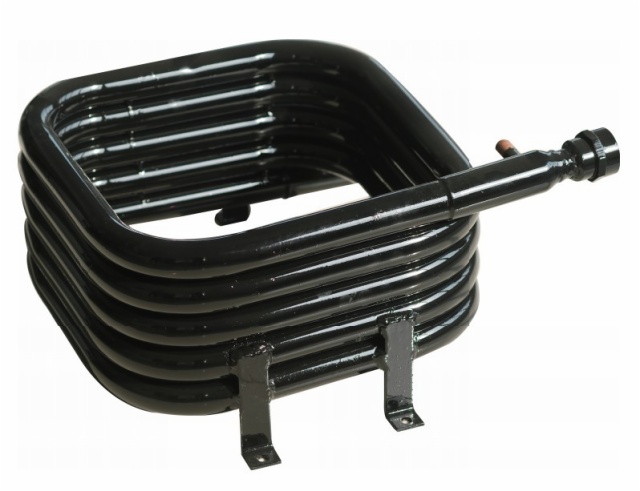

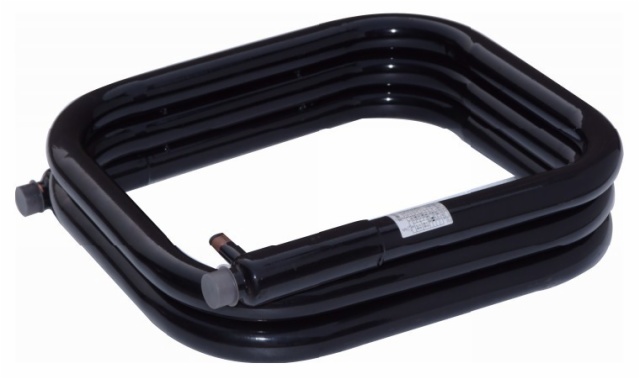

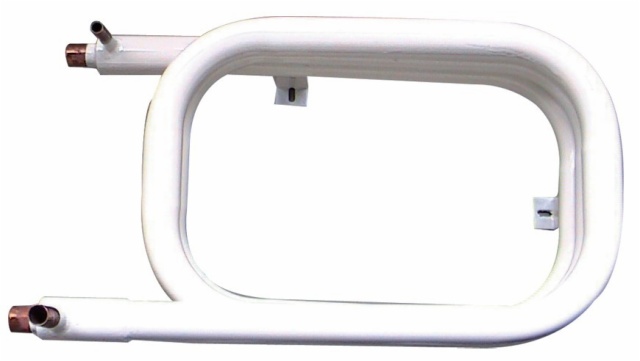

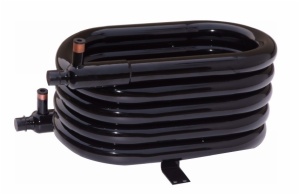

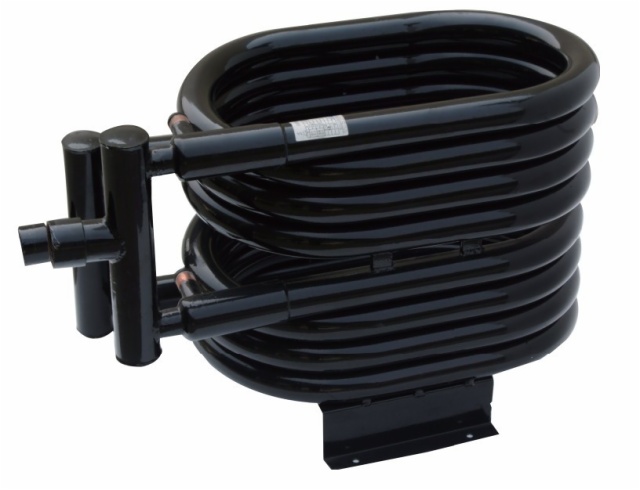

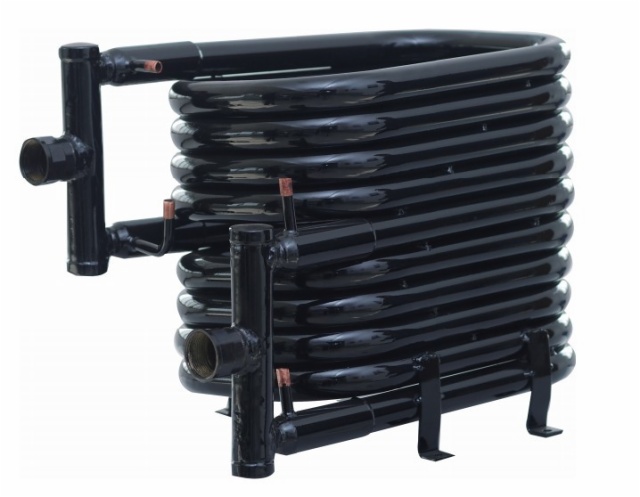

CC series has double wall inner copper tube. Double wall inner tube prohibited two medium mixing and be polluted when one wall of inner tube leaked. It increased the safety of performance. CC series coaxial heat exchangers are mainly applied in the following application.
1. sanitary water heater: The safety of sanitary water heater effected the health of drinking people. If heat exchanger leaked, lubricant oil will go to water from refrigerant and compressor and is harm to people drink or bath of polluted water. CC series coaxial heat exchangers enhanced the safety of sanitary water heater.
2. Transformer oil cooling, drinking cooling or heating, chemistry or chemical, bio food, medicine application
.

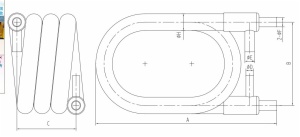

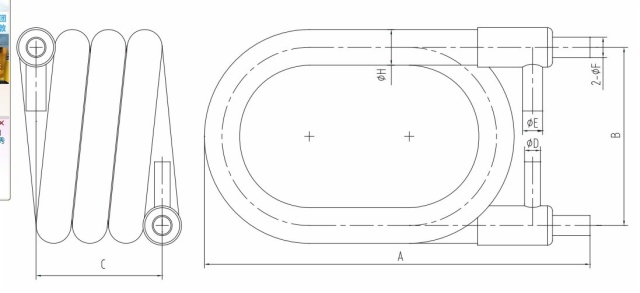

Model
|
Heat Capacity
|
A (mm)
|
B (mm)
|
C (mm)
|
D (mm)
|
E (mm)
|
F (mm)
|
H (mm)
|
TON
|
L
|
W
|
H
|
Liquid Inlet
|
Air Outlet
|
Water Inlet / Outlet
|
Pipe Diameter
|
CHE020
|
0.5
|
370
|
140
|
47
|
9.5
|
12.7
|
16
|
28
|
CHE025
|
0.75
|
370
|
140
|
75
|
9.5
|
12.7
|
16
|
28
|
CHE035
|
1
|
300
|
140
|
104
|
12.7
|
16.0
|
16
|
28
|
CHE055
|
1.5
|
340
|
140
|
133
|
12.7
|
16.0
|
16
|
28
|
CHE070
|
2
|
385
|
170
|
127
|
12.7
|
16.0
|
22
|
33
|
CHE090
|
2.5
|
400
|
170
|
158
|
16.0
|
19.0
|
22
|
33
|
CHE100
|
3
|
410
|
188
|
136
|
16.0
|
19.0
|
22
|
38
|
CHE125
|
3.5
|
395
|
188
|
175
|
16.0
|
19.0
|
22
|
38
|
CHE150
|
4
|
390
|
188
|
214
|
16.0
|
19.0
|
22
|
38
|
CHE165
|
4.5
|
502
|
296
|
161
|
19.0
|
22.0
|
28
|
45
|
CHE185
|
5
|
390
|
188
|
253
|
19.0
|
22.0
|
28
|
38
|
CHE200
|
6
|
560
|
296
|
161
|
19.0
|
22.0
|
28
|
45
|
CHE225
|
7
|
483
|
296
|
207
|
19.0
|
22.0
|
28
|
45
|
CHE250
|
8
|
560
|
296
|
207
|
19.0
|
22.0
|
28
|
45
|
CHE300
|
10
|
600
|
296
|
229
|
19.0
|
22.0
|
32
|
50
|
Remark
|
1. The material of inner pipe is copper tube, outer pipe is precision tube
2. The trim size should be affirmed by the pratical drawing
|
